Factory Hydraulics

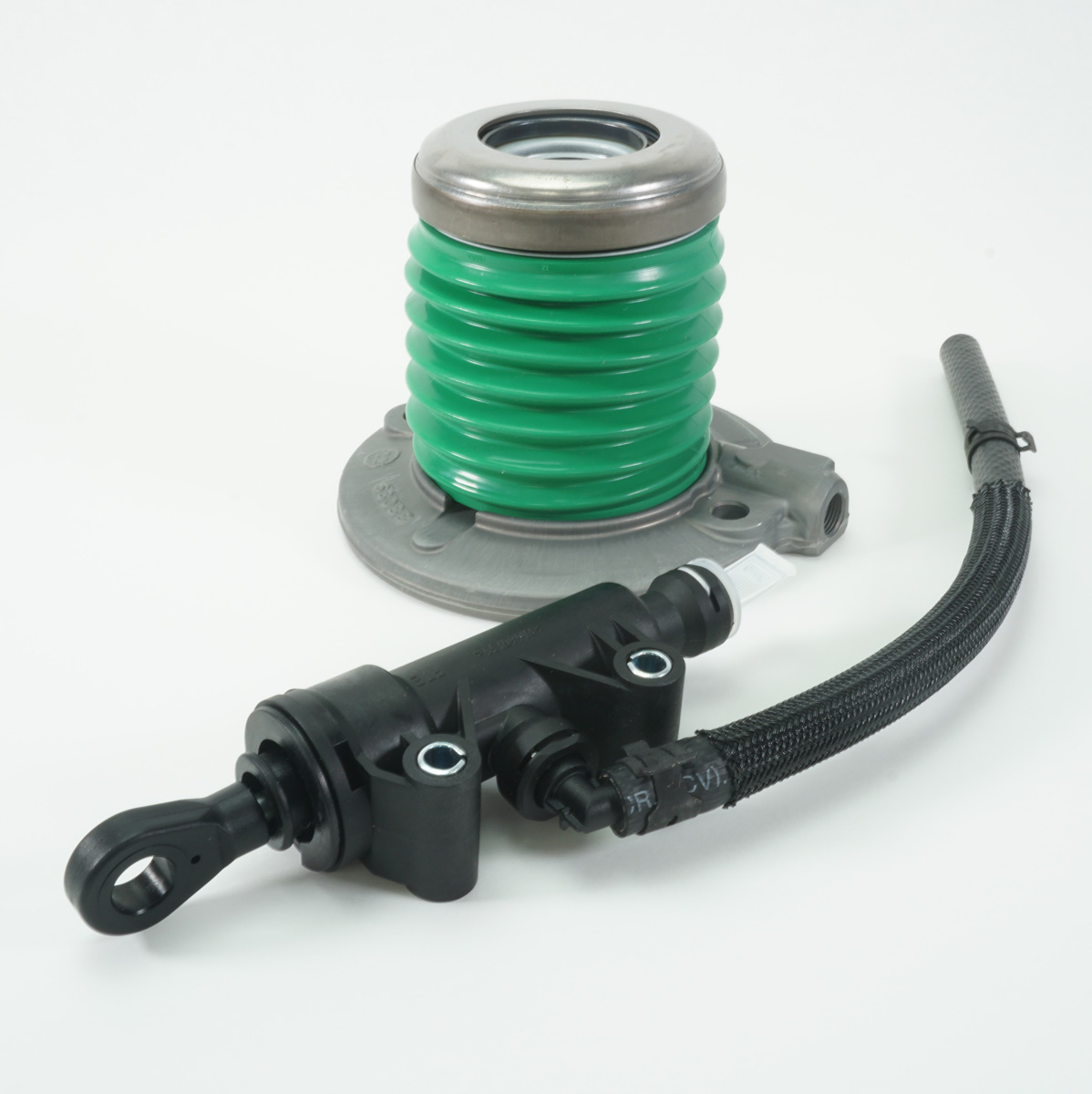

RAM factory hydraulic master and slave cylinders

If you are replacing your factory internal slave cylinder or master cylinder, RAM has a quality replacement available for you! See the chart below for application specifics.

Shop Now

SLAVE CYLINDERS

APPLICATION

2010-15 Camaro SS

FREE HT.

4.850"

COMP. HT.

3.900"

TRAVEL

.950"

PART NO.

511

APPLICATION

2016-up Camaro SS

FREE HT.

3.550"

COMP. HT.

2.700"

TRAVEL

.850"

PART NO.

512

APPLICATION

2009-12 ZR1 Corvette

FREE HT.

3.500"

COMP. HT.

2.630"

TRAVEL

.870"

PART NO.

514

APPLICATION

2014-19 Corvette

FREE HT.

3.735"

COMP. HT.

2.747"

TRAVEL

.988"

PART NO.

516

APPLICATION

2007-20 Mustang GT500, GT350

FREE HT.

2.850"

COMP. HT.

2.050"

TRAVEL

.800"

PART NO.

517

APPLICATION

2011-17 Mustang GT

FREE HT.

4.000"

COMP. HT.

2.650"

TRAVEL

1.350"

PART NO.

518

APPLICATION

2008-23 Challenger

FREE HT.

4.000"

COMP. HT.

2.650"

TRAVEL

1.350"

PART NO.

519

APPLICATION

1998-02 Camaro/Firebird V8

FREE HT.

3.400"

COMP. HT.

2.550"

TRAVEL

.980"

PART NO.

520

APPLICATION

2005-10 V8 Mustang GT, 2005-17 V6

FREE HT.

4.000"

COMP. HT.

2.650"

TRAVEL

1.350"

PART NO.

523

APPLICATION

1997-04 Corvette

FREE HT.

3.350"

COMP. HT.

2.600"

TRAVEL

.980"

PART NO.

525

APPLICATION

2005-13 Corvette

FREE HT.

4.400"

COMP. HT.

3.550"

TRAVEL

.850"

PART NO.

527

MASTER CYLINDERS

APPLICATION

1998-02 Camaro/Firebird V8

ADJ?

Yes

PART NO.

510

APPLICATION

2005-10 Mustang GT

ADJ?

PART NO.

513

APPLICATION

1997-04 Corvette

ADJ?

Yes

PART NO.

515

All technical inquiries and questions on hydraulics are handled electronically – please use the link here to access the E-Tech hydraulics application questions form. Please use the link here to access the E-Tech hydraulics technical questions form.

If you do not have access to email, print this form, complete it, and mail to:

RAM Clutches, 201 Business Park Blvd, Columbia, SC 29203 ATTN: Hydraulics tech.
